Series 60 Detroit Diesel Engines

CYLINDER BLOCK - group: 1.1001

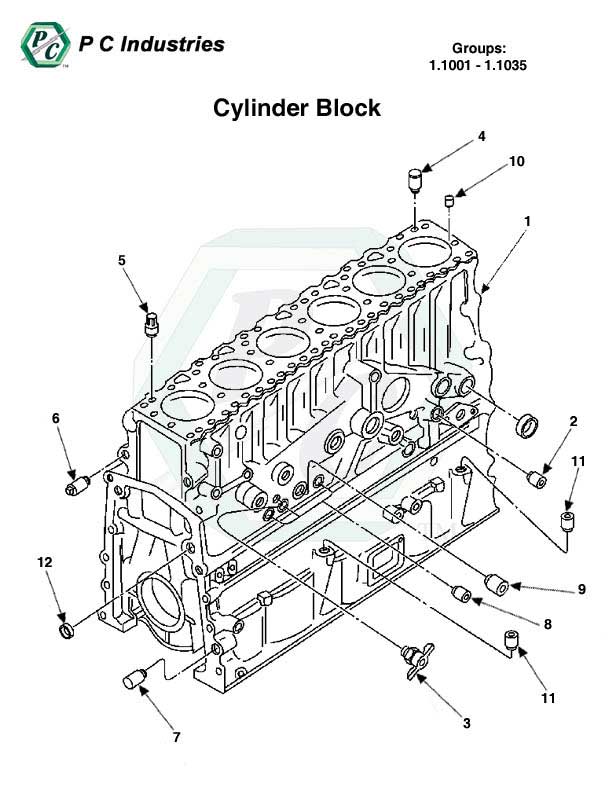

1.1001 - 1.1035 Cylinder Block.jpg - Diagram
Page: 1
Part No. Description Group Ref#11.1L12.7L14.0L Price QOH
8929187 Block Assembly; (Option Type #251) 1.100101A/RA/RA/R0
Details 23535008 Block Assembly, Complete; (Option Type #707, 645,
666, 683)
1.100101A/RA/RA/R$6,918.560
Details 23527079 Block Assembly; TLC For Articulated STL Piston Cooling
Nozzle; 14L; (Option Type #'s 582, 603, 682)
Superceded... Click 'Details' for replacement.
1.100101A/R0
Details View Images 8929432 Plug, Weep Hole; (Special) 1.1001086$1.2929
Details 8929015 Dowel Pin, 16mm Circular 1.1001071$8.110
Details View Images 8929022 Dowel Pin, 16mm Diamond 1.1001062$9.601
Details View Images 8929152 Dowel Pin, 20mm Circular 1.1001041$6.551
Details View Images 8929153 Dowel Pin, 20mm Diamond 1.1001051$9.481
Details 23506976 Block Assembly; (Siamese Port); (Option Type #278)
Superceded... Click 'Details' for replacement.
1.100101A/RA/RA/R0
Details View Images 5139988 Plug, 1" Diameter Stainless Cup 1.100111444$0.93119
Details 5139991 Plug, 1-1/2" Cup 1.100111666$1.34127
Details View Images 5151272 Plug, 11/32" Special; (1.8160) 1.100111111$1.0824
Details View Images 8922327 Plug, 1/4" NPTF; (12.9550) 1.100109666$0.6310
Details View Images 8923313 Plug, 3/4" Pipe; (12.9550) 1.100111111$1.20250
Details View Images 8923916 Plug, 1/2" Pipe; (12.9550) 1.100111111$0.6452
Details View Images 8924517 Plug, 3/8"-18; Square Socket; Vibra Seal 1.100111222$0.991150
Details View Images 8929432 Plug, Weep Hole; (Special) 1.100108666$1.2929
Details 8929594 Plug, 3/8"-18 Diameter Pipe; Ext. Hex Socket 1.100111111$1.650
Details 23530556 Cap, Main Bearing; (End Cap) 1.100112777$115.310
Details View Images 8924140 Draincock, 1/4"; (12.9510) 1.100103111$11.985
Details View Images 8920062 Dowel Pin, 12mm X 29mm 1.100110111$20.863
Details View Images 8929152 Dowel Pin, 20mm Circular 1.100104111$6.551
Details View Images 8929153 Dowel Pin, 20mm Diamond 1.100105111$9.481
Details View Images 141264 Dowel Pin, 7/16" X 1"; (9.1010) 1.100110222$2.362
Details 8929015 Dowel Pin, 16mm Circular 1.100107111$8.110
Details View Images 8929022 Dowel Pin, 16mm Diamond 1.100106222$9.601
Details 8929124 Bolt, M20 X 178mm 1.100100141414$22.580
Details View Images 8929125 Washer; Special 1.100100141414$2.046
GROUP 1.1001 CONTINUED ON NEXT PAGE
