Series 92 Detroit Diesel Engines

CYLINDER KITS USED WITH OPTION TYPE #'s 430, 431,
432, 452, 665. - group: 1.6182

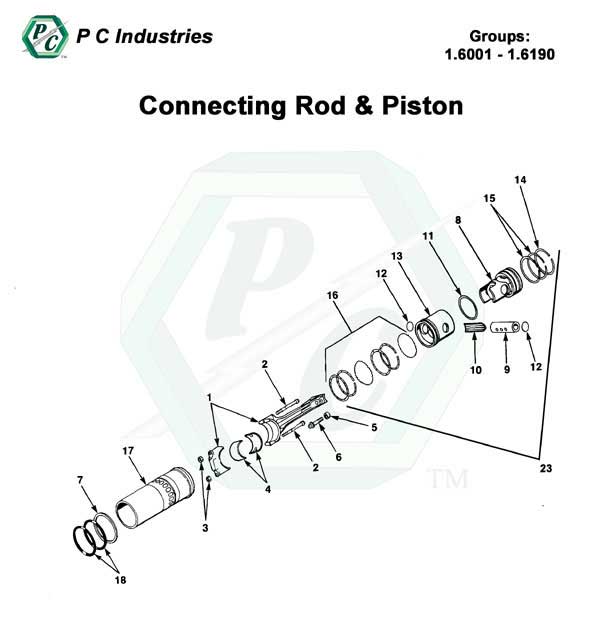

92_connecting_rod_pg19-38.jpg - Diagram
Page: 33
Information   Abbreviations   Alphabetical Index   Group Index
Part No. Description Group Ref#6V8V12V16V Price QOH
The Cylinder Kit Below Is Used With
Option Type #'s 430, 431, 432, 452, 665.
USE WIDE GAP FIRE RING 23524192 FOR HIGH OUTPUT
ENGINES WITH INJECTORS 110 CMM. OR ABOVE!
Details View Images 23524343 Cylinder Kit, Turbo, Std., 17:1 (.85" Port Ht., 20° Port Angle) 1.618200A/RA/RA/RA/R$408.03100+
Details View Images 23508383 Liner, Cylinder, Standard (.85" Port Ht., 20° Port Angle) 1.618217 1 1 1 1$118.87100+
Details View Images PC-LCK-24342 Linerless Cylinder Kit, Turbo, 17:1, Standard Gap Fire Ring 1.618223A/RA/RA/RA/R$308.62100+
Details View Images 5149963 Dome Kit, 92 Piston 17:1, Turbo 1.618200 1 1 1 1$161.320
Details View Images 5144872 Crown, Piston, 17:1, Turbo (1.6110) 1.618208 1 1 1 1$119.1827
Details View Images 23508986 Skirt, Crosshead (1.6110) 1.618213 1 1 1 1$81.009
Details View Images 8923729 Seal Ring, Crosshead (1.6106) 1.618211 1 1 1 1$2.48100+
Details View Images 23501687 Bearing, Piston Pin (Slipper Type) (1.6142) 1.618210 1 1 1 1$26.29100+
Details View Images 5101120 Pin, Piston (1.6140) 1.618209 1 1 1 1$20.57100+
Details View Images 5180250 Retainer, Piston Pin (1.6150) 1.618212 2 2 2 2$1.54100+
Details View Images 8927189 Seal Ring, Cyl. Liner 1.618218 2 2 2 2$7.73100+
Details View Images 23524542 Ring Set, Piston (Standard Gap Fire Ring) (1.6115) 1.618200 1 1 1 1$86.26100+
Details View Images 23524191 Ring, Top Fire (Std. Gap) (6.6120) 1.618214 1 1 1 1$48.260
Details View Images 8923113 Ring, Compression (2nd and 3rd Grooves) (1.6120) 1.618215 2 2 2 2$35.8671
Details View Images 23524350 Ring Set, Oil Control (For One Piston) (1.6130) 1.618216 1 1 1 1$29.7832
CONTINUE TO NEXT PAGE FOR CYLINDER KITS IN GROUP 1.6182
